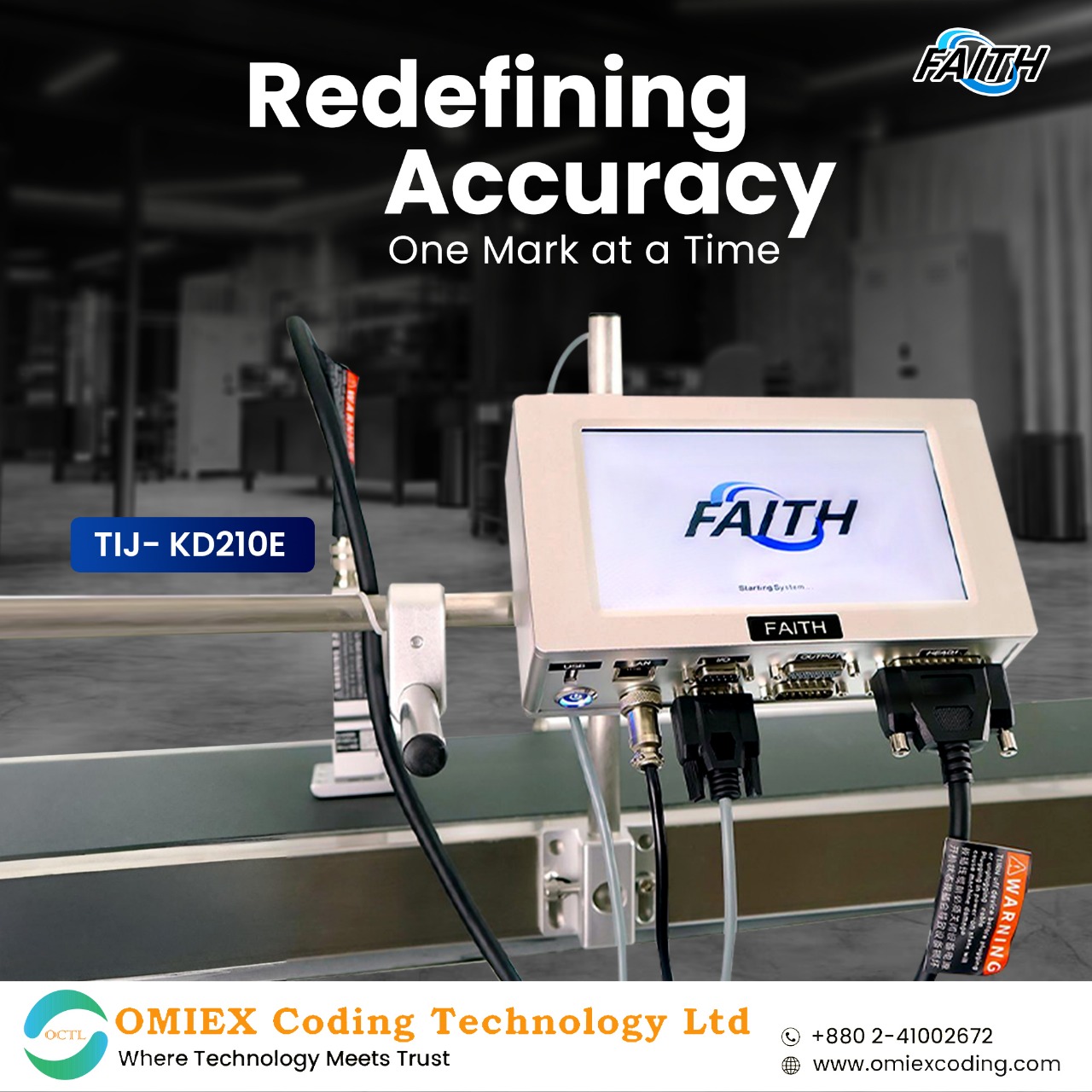

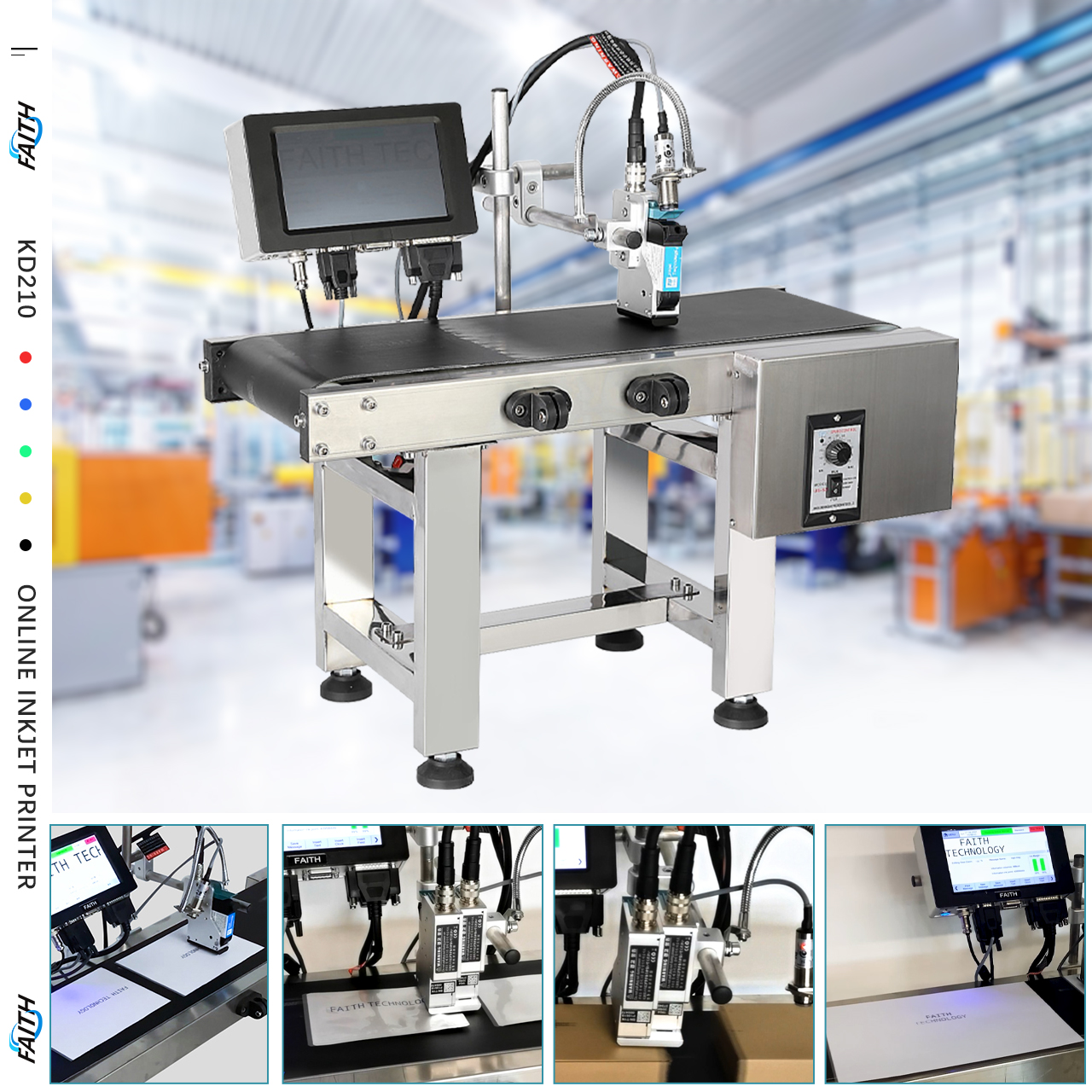

Model: KD210E
Flexible Split Design, Convenient Printing Experience.
- Brand: FAITH
- AVAILABILITY: AVAILABLE
- Code: MOD8410
The KD210 features an efficient and flexible dynamic database printing function, supporting traceability and anti-counterfeiting systems, dynamic database real-time high-speed printing, and 40 languages. Its powerful GS1 QR code and barcode capabilities meet various customer needs for variable code applications. It is widely used in the packaging industry, pipe, profile, and other professional production lines, dedicated to comprehensively solving your printing problems and providing higher quality service.
Product Overview
- Smooth operation, stable performance
- The product uses the Texas instruments AM3358 CPU, ensuring smooth operation without any lag during use.
- One machine, two ways to use
- The flexible configuration of the printhead module allows this machine to perform single-head printing as well as seamless dual-head printing. Using two printheads, it can serve two production lines, replacing the need for two separate printers.
- Three types of data interfaces, four methods of information transmission
- Interface types: USB, RS232, RJ45. Users can store image files (bmp), text files (txt.csv/xins), databases, and Excel spreadsheets on a USB drive and connect it directly to the machine for printing.
- Two printing trigger modes
- Encoder: Achieves equidistant printing on products such as pipes and profiles High-performance photoelectric sensor: Prints on individual products.
Exceptional Performance, Long-Lasting Durability
The body is made of aerospace aluminum with an IPES protection rating, equipped with optional high-and software capability
Upgraded Nozzle Anti-Clogging Design
Drawing on our experience in independent research and practical application, we innovatively designed the Alternate Printing mode significantly improving nozzle dogging issues
New Upgraded Anti-Clogging Nozzle Design
The system errbeds a powerful ink droplet consumption algorithm, achieving real-time cost control of cartridge printing saving 15% in consumables compared to similar products.
| Printing Parameters |
Print head type | TU (Thermal Inkjet) Foam Print head Printing Parameters |
| Printing accuracy | Printing resolution of up to 600*600 DPI (vertical: 100 OPI, 150 DPI, 300 DPI, 600 DPI; horizontal: 30-600 DPI precise adjustment), capable of printing in 1-6 levels of grayscale. |
| Printing speed | 406 meters/90 DPI, 304 meters/120 DPI, 240 meters/150 DPI, 120 meters/300 DP 80 meters/600 DPI. (Multiple sets of variable data with ultra-fast response printing within 10 milliseconds) |
| Printing content | Multiple languages/GS1 Data Matrix/dynamic traceability QR codes/barcodes/graphics/serial numbers/ dates/hits/counter/variable databases/network serial port real-time dynamic data printing. |
| Printing materials | Cartons/plastics/metals/wood/pipes/stones/glass/cables/electronic components/automotive parts/industrial chemicals packaging/medical, food, and gift packaging boxes. |
| Ink type | Food-grade, water-based, oil-based, mid solvent, solvent-based 42ml ink cartridges. large-capacity ink bag continuous ink supply system. |
| Ink colors | Black, white, red, yellow, blue, green, invisible. UV (various colors of food-grade inks) |
| Ink cartridge chip | RFID contactless chips, automatic identification of optimal ink parameters, and recording of ink levels. |
| Machine parameters |
| Operating system | Embedded Linux secure operating system. |
| Main hardware | U.S. TI AM3358 industrial -grade CPU, US. Xilinx Spartan6 industrial-grade FPGA, TIJ dedicated ASIC chip |
| Communication interfaces | USB, RS232, TCP/IP network interfaces (supporting network remote centralized control and management, integration with weighing machines/conveyors/paging machines/packaging machines/ERP databases/ pharmaceutical supervision codes/anti-counterfeiting traceability systems) |
| External interfaces | Photocell/encoder/alarm control output/external serial number update/external printing information selection/flip inversion control/ print head connection port |
| Print head installation | Separate print head installation supports seamless dual-head splicing and individual separation (with 1.8-meter connecting cables), and can be equipped with collision prevention components for print head modules |
| Supports languages | Supports over 40 languages from various regions and countries (Chinese, English, Arabic, Russian, French, Vietnamese Korean, Burmese, Indonesian, Portuguese, Japanese, Spanish, Italian, etc.) |
| Power supply parameters | Power adapter: input 100-240V AC Outpour 30V DC 4A |
| Machine materials | Industrial-grade standard protective casing (aerospace-grade aluminum/ industrial-grade stainless steel) |
| Machine specifications | Man unit: 202mm119mm61.2mm. Print head assembly: 112mm79mm103mm |
| Working environment | Temperature: 0-45°C/Humidity: 30-70% RH |
