Single Pass Color Digital Printing Machine
Our Single Pass Color Digital Printer adopts the latest and most advanced technology.
- Brand: FAITH
- AVAILABILITY: AVAILABLE
- Code: SIN4533
Printing System & Control Board.
*Core processor: Adopts internationally renowned brand, XlLlNX industrial-arade processor chip from the USA.
*Core storage module: Adopts internationally renowned brand Micron DDR4 memory chip from the USA.
*Data transmission module: Adopts intonationally renowned brand Micro Chip industrial-grade Gigabit Ethernet chip from the USA.
Software:
The software is developed by ourselves, and our factory can upgrade your software by remotely controlling in the future.
Printing Medium:
Water-based ink is used on water absorbing material, such as on carton packaging, corrugated box, pizza box, nonwoven fabric, handbag, gunny sack, canvas bag, cotton bag, wood board, paper bag, egg box, paper cup customization, color label printing and other industries.
Print Media Thickness:
Print media thickness ranges from 0 to 110mm.
The printhead can move vertically to accommodate different printing thicknesses, with customization available for other thicknesses.
Ink Type:
* There are two kinds of water-based ink, one is water-based pigment ink, the other is water-based dye ink.
* The water-based pigment can resist ultraviolet radiation, and it is fadeless and waterproof.
The water-based dye can't resist ultraviolet radiation, and it is not waterproof, which will fade over time.
* These two inks are selected according to different your needs. You can freely choose the type of ink according to the characteristics of your printed products, storage time and other requirements.
* Water-based ink has 4 colors: C, M, Y, K
(Cyan, Magenta, Yellow, Black)
* One liter ink can print 60,000 pieces of A4 paper
with 5% coverage.
Printing Parameter:
Machine Name Single Pass Color Digital Printing Machine
Model FP001
Printing Technology Thermal foaming technology, Feathering technology
Printhead Model EPSON A3+
Number of printheads 1-10
Printing Width 329mm/head
Printing Precision 1200*300 DPI 1200*600 DPI 1200*1200 DPI
Printing Mode SD HD Ultra HD
Printing Speed 0-48m/min adjustable 0-24m/min adjustable 0-12m/min adjustable
Printing Medium Water absorbing material
Medium Thickness 1-110 mm
Ink Type Water-based pigment or dye ink
Ink Color C/M/Y/K
Image Format JPG, PDF, PSD, BMP, TIFF, GIF, TGA, EPS, etc.
Operating System Win7/Win10/Win11
Language Interface Chinese/English (any other language can be customized)
Control Mode Standard industrial-grade tablet computer, color touch screen control
Working Environment Temperature 15℃-35℃, humidity 20%-80%, non-condensing state
Working Power 480W
Input Voltage AC 110/220V, 50/60HZ
Data transmission interface Gigabit network interface transmission

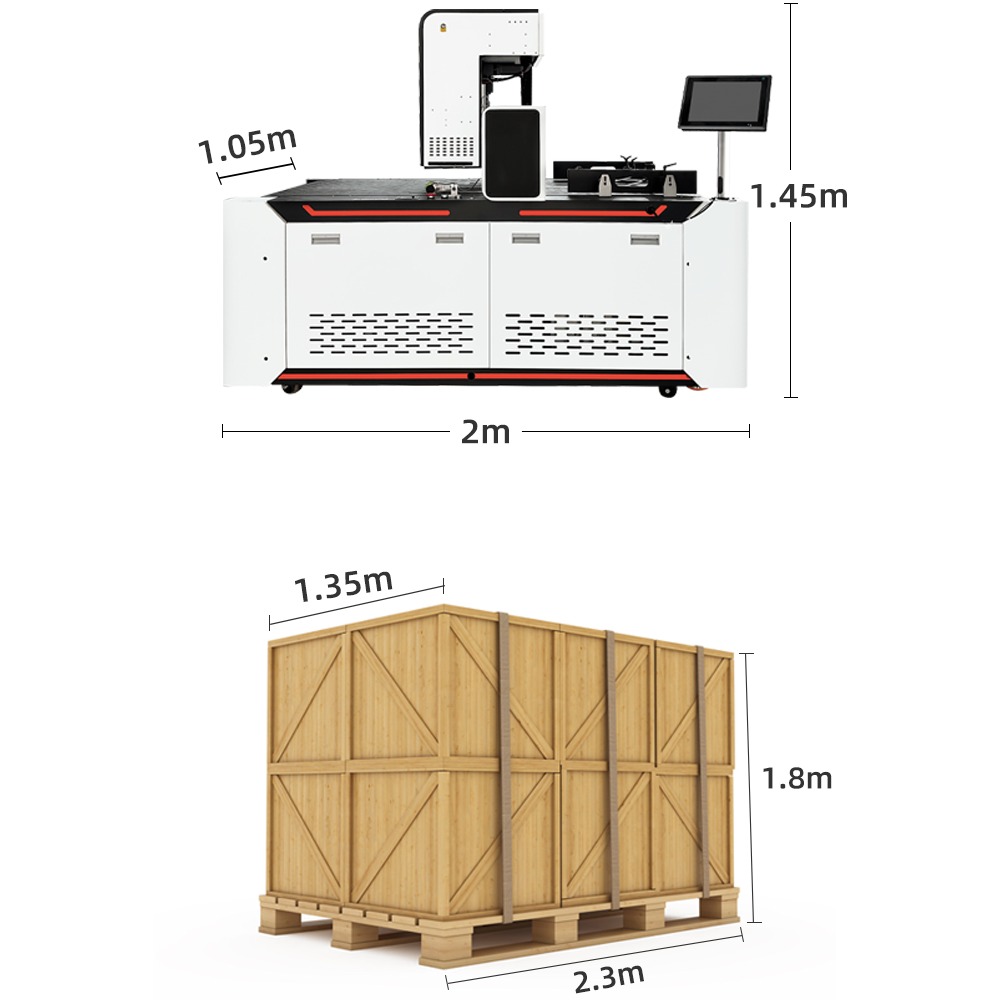

Width of conveyor belt Standard width: 800mm/1300mm, any width can be customized
