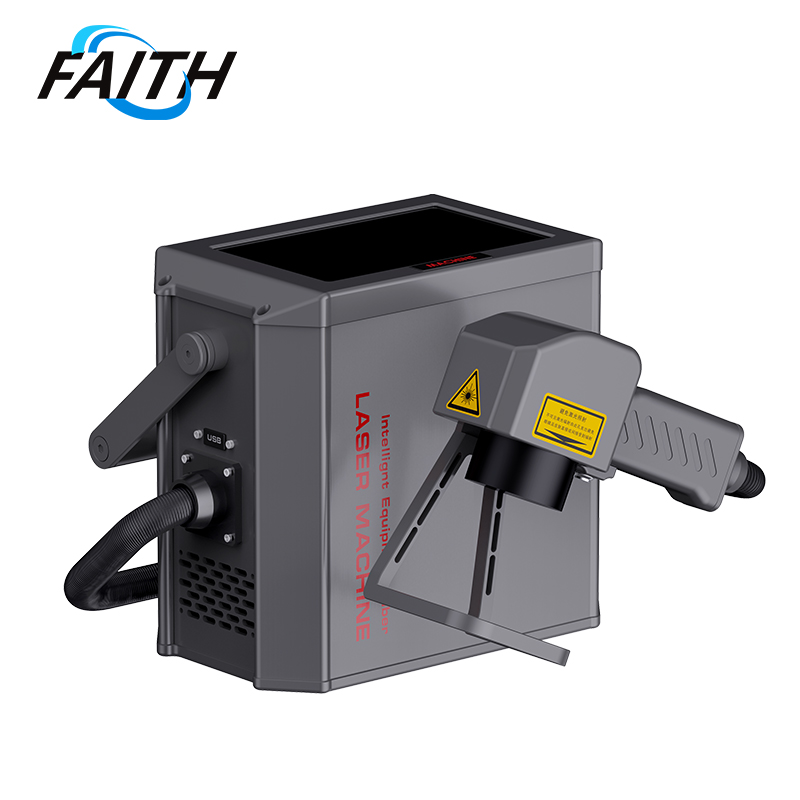

Model PL-602 Laser

Handheld Fiber Laser Marking Machine. High-quality products at reasonable prices.

Brand: FAITH
AVAILABILITY: AVAILABLE
Code: MOD5355

Providing high-quality products at reasonable prices makes laser technology accessible to everyone.

Precision design, flexible usage: Excellent German craftsmanship and outstanding component design ensure a reliable, high-quality system capable of handling various application scenarios.

Setting the standard for peace of mind: The color touchscreen provides intuitive icons and shortcuts, ensuring user-friendly operation. Safety features are quick and easy to use, and information can be conveniently loaded via a standard USB port and accessed through Ethernet.

It can accommodate your development needs by easily updating the power of your marking machine without requiring a complete system overhaul. Highly flexible, the laser solution can process various workpieces, including brittle, soft, hard, and surface-removed materials.

20W: An economical solution suitable for integration with standard production lines. 30W: Aver tile, high-performance solution for high-speed production lines.

50W: A powerful solution ideal for applications requiring high speed and depth, and can also be used for engraving.

Technical Advantages:

Smartly manage your marking processes, from workshops to automated production lines, allowing you to easily handle multiple tasks.

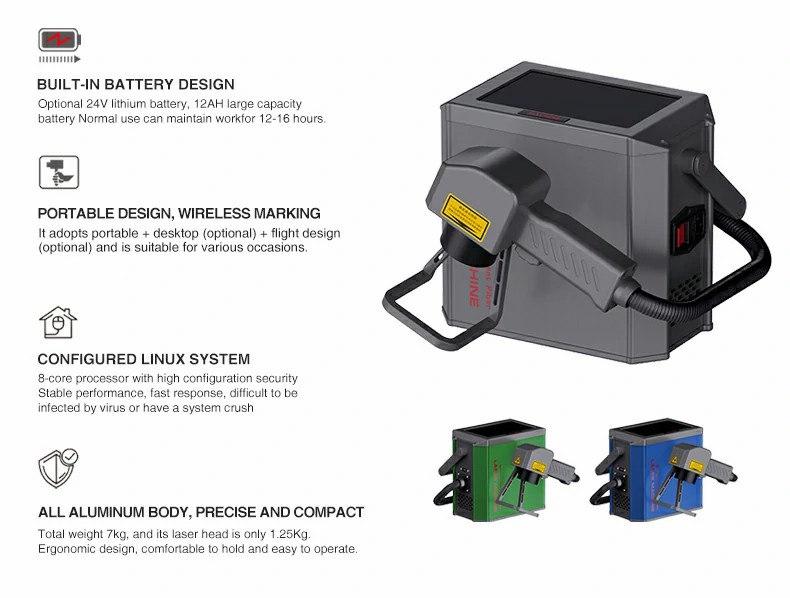

Built-in battery design

24V lithium battery (optional), 12AH large capacity battery, supports 12-16 hours of normal use.

Equipped with a Linux system

Equipped with an 8-core processor, providing high security, stable performance, fast response times, and resilience to viruses and system crashes.

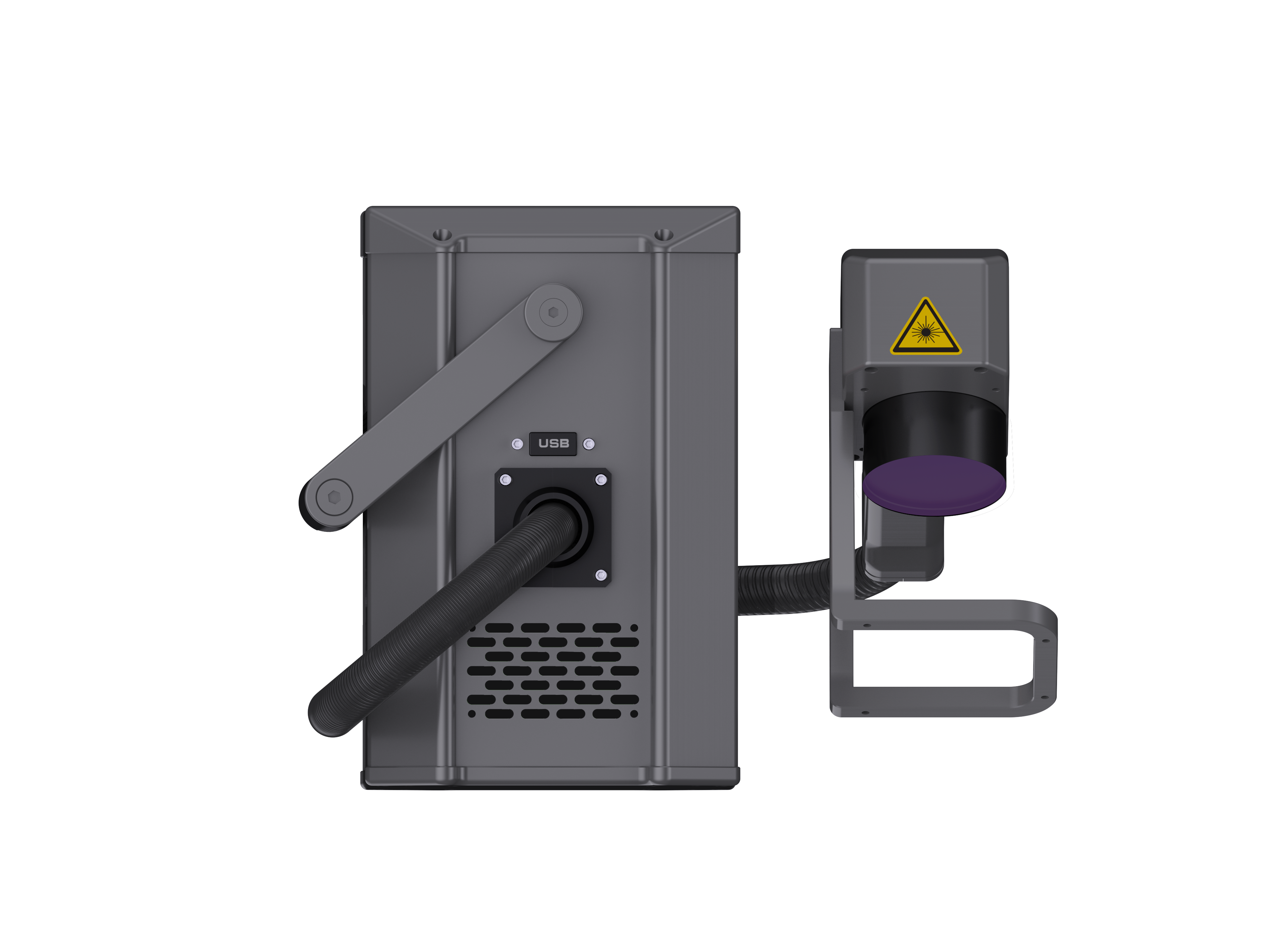

Portable design, versatile usage

Featuring portable, desktop (optional), and handheld (optional) designs, suitable for various applications.

All-aluminum body, compact and precise

The entire machine weighs 8.25 kg, with the marking head alone weighing just 1.25 kg. Ergonomically designed for comfortable handling and ease of operation.

Overall Machine Characteristics:

Material of the Whole Machine: Sandblasted Anodized Full Aluminum Structure '

Laser Emitter: Fiber Laser Generator with a lifespan of over 100,000 hours

Laser Wavelength: 1064nm

Actual Output Power : 20W ?.30W ?.50W

Marking Speed: 12000mm/s

Main Controller: 8-inch Touch Controller

Cooling System: Ambient Air Cooling

Minimum Line Width: 0.0012mm

Repeated Positioning Accuracy: 0.003mm

Marking Range: 75mmx75mm 120mmx75mm (or custom sizes) 150 x 150 mm (or customizable)

Positioning Method: Red Light Indicator

Number of Lines for Marking: Any Line within Marking Range

Production Line Speed: 0 to 130 meters per minute (specific speed depends on material)

Software Introduction:

Multi-Language: English, French, Spanish, German, Chinese, Russian, Arabic, etc.

Administrative Permissions: Multi-user Management and Permissions

Operating System: Linux System

Inkjet Coding Mode: Three Inkjet Coding Modes: Static, Analog, Encoder

Reserved Signal: Start Printing, Printing Status, Printing Completed, Fault Alarm

Data Protection: Has Power Failure Data Protection Function

Missed Mark Detection: Provide overspeed alarm function to prevent mis-triggering due to material reflection.

Remove Cross Points Automatically removes intersecting points to avoid overlapping marks.

Marking Software: Software that supports single and dual machine marking

Supported Types:

Fonts: Standard Fonts for Chinese, English, Numbers, and Traditional Characters

File Format: BMP/DXF/HPGL/JPEG/PLT

Barcode: CODE39, CODE128, CODE126, QR Code, TruMark (optional)

Overall Parameters:

Power Supply: Standard Configuration: External Power Supply 220V/50Hz

Power Consumption: 200W

Net Weight of the Machine: Chassis: 7 kg, Laser Head: 1.25 kg, Total Weight after Packaging: 8.25 kg

rail Dimensions: Chassis: 270*155*245 mm, Laser Head: 240*100*230 mm, Packaging Box: 470*410*360 mm

Batt durance: Optional: Built-in Battery: 12000mAh, Normal Operating Time: 12-16 hours

Environment:

Requirements: External temperature: 0°c to 45°C; Humidity: 95%; Non-condensing; No vibration
